Solar AC home system

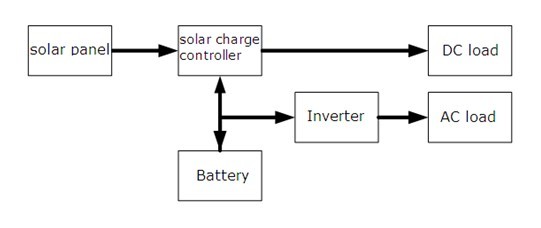

Program Diagram：
Solar system working principles:
Solar charge controller regulates the solar panel to charge the battery. Inverter converts direct current (DC) of battery into alternating current (AC) and provides the power for AC load.
The core components are solar charge controller and inverter. Controller’s functions are regulating the solar panel to charge the battery and protecting the battery from over-charging. Inverter converts the DC power into AC power to supply the AC load.
Typical application and configuration:
AC photovoltaic system is widely used as most of our everyday use electrical appliances are AC loads. AC system can be applied in many fields like daily household power supply, office electricity supply and production base electricity supply etc.
Typical configuration:
|
Solar panel |
Battery |
Controller |
Inverter |
Daily generating capacity |
|
180Wp |
（12V, 100AH）×2 |
LS1524 |
400VA |
500Wh |
|
360Wp |
（12V, 100AH）×4 |
LS2024 |
600VA |
1000Wh |
|
720Wp |
（12V, 200AH）×4 |
VS3024N |
1000VA |
2000Wh |
|
1440Wp |
（12V, 200AH）×8 |
VS5048N |
1500VA |
4000Wh |
